| Model |

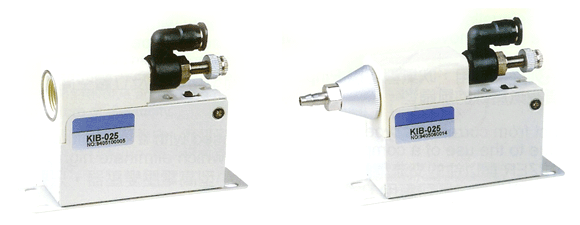

KIB-025 |
| Item |
| Media |
Air (Non lubricated dry
air) |
| Power supply |
DC24 V ±5% |
| Consumption |
Approximate 100mA |
| Operating high-voltage
power supply |
Miniaturized AC hight-voltage
hight-frequency type power supply built-in |
| Output voltage |
Approximate 2 KY |
| lon balance |
±15V (300mm away for the
nozzle outlet) |
| lndicator
LED |
Power supply |
Power indicator LED turns
on (Green) |
| Abnormality |
Abnormality indicator
LED turns on (Red) |
| Abnormality output
circuit |
Open collector (NPN) 20mA
(Max.50mA) |
| O3 generating
amount |
0.03 ppm or less |
| Supply air flow range |
Approx. 50ℓ /min (ANR) |
| Operating air pressure
range |
0.05~0.5MPa (0.5~5.0kgf
/㎠) |
| Operating environmental
temperature |
0~40℃ |

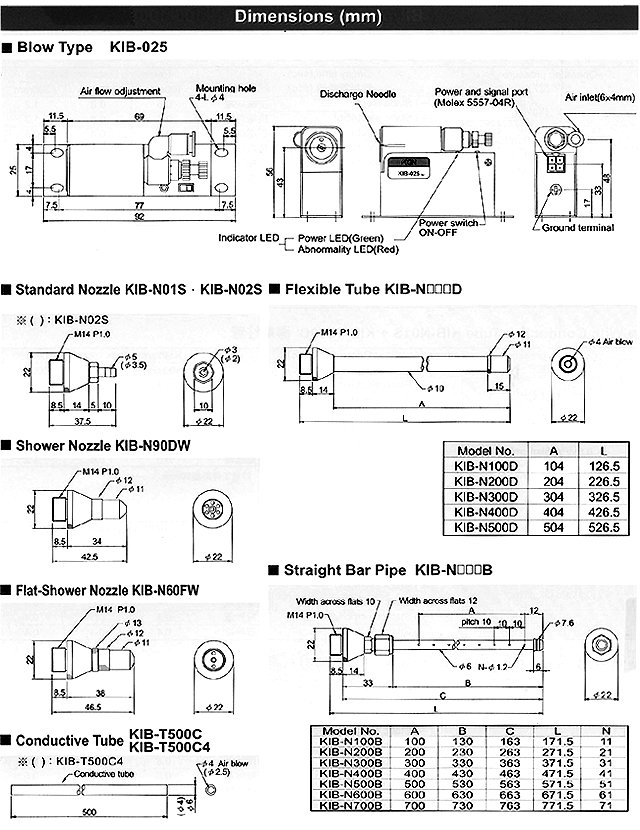

| Overall dimensions |
(W)25 × (D)92 × (H)56
mm |
| Weight |
164g |
| Accessories |
1.Power and signal cable
2.Ground cable(2M)
3.Discharging needle clean brish
4.lnstuction manual |
