| 특징 |
| - 400W 고광량 UV Lamp |
 |
| - 안전설계 (special UV cut design) |

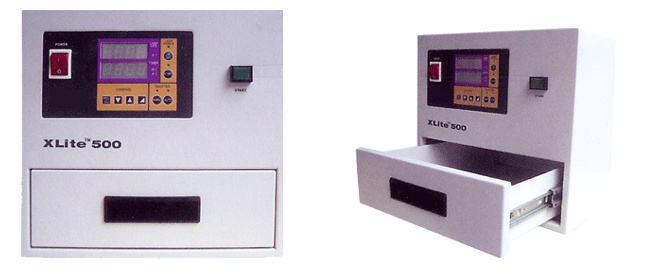

| - 소형 생산 라인과 R&D에 적합한 UV Box Type 경화장치 |
| |
| |
| |
| |
|
|
|
|
 |
|
|
|
| Specification |
|
| Model |
XLite 500P |
XLite 500Q |
| Input Voltage |
200-240 VAC 50/60HZ |
| Lamp Power |
400W |
| Intensity |
60-80mW/㎠ (UVA 80mm) |
| The peak wavelength |
365nm |
365m/254m |
| Dimensional Outlines |
300(W)×283(H)×400(D)mm |
| Cure space (MAX) |
250(W)×70(H)×230(D)mm |
| Lamp Life |
1000hr |
1000hr |
| Time Setting |
0.1sec ~ 999.9min |
| Weight |
16.5kg |
| Spare Lamp |
TP |
TQ |
| Fuse |
8A |
|
|
|
