| 특징 |

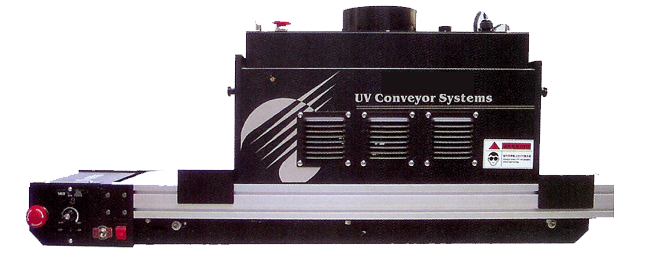

| - 소형, Table Top 컨베이어 Type |
| - 400W High powery intensity |
- Speed, Direction, Lamp 와 거리
가변
. 가능 |
|
 |
|
|
|
|
 |
|
|
|
| Specification |
|
| Model |
XLite 8250P |
XLite 8250Q |
XLite 8250G |
XLite 8250F |
| Voltage |
220
VAC 50/60HZ |
| Power |
400W |
1000W |
| Intensity |
60-80mW/cm2 |
50-70mW/cm2 |
120-150mW/cm2 |

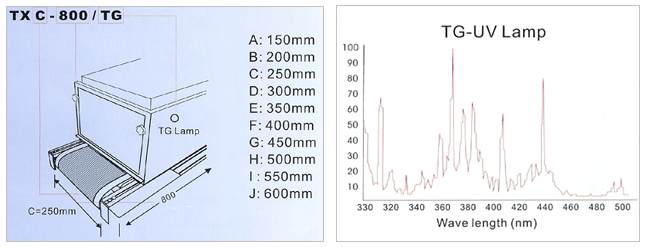

| UV peak wavelength |
365nm |
254/365nm |
365nm |
254/365nm |
| Average Lamp life |
1,000 hour |
2,000 hour |
| Distance lamp to belt |
20-180mm adjustable |
| Conveyor Speed |
0.6M/min~5M/min adjustable |
| Width of entrance |
250mm |
| Height of the conveyor |
110mm |
| Dimensional outline |
L 1120 W 280 H 300-500 mm |
| Weight |
35kg |
50kg |
| Spare Lamp |
TP UV Lamp |
TQ UV Lamp |
TG UV Lamp |
TF UV Lamp |
|
|
|
|
 |
|
|
