| ■ Standard specifications |
| Power
supply |
AC110V / AC220V / 50/60Hz |
| Power
consumption |
15VA (Max.) |
| Rotor
speed |
variable, Max. 120r.p.m |
| Operation
mode |
Auto mode
Steady mode |
| lnput
signal |
Foot switch or non-voltage N/O input.
(Voltage input of DC5-24V is available by internal
dip switch) |
| Shot
end signal |
Open collector(DC24V, Max200mA) |
| Applicable
viscosity |
Low viscosity |

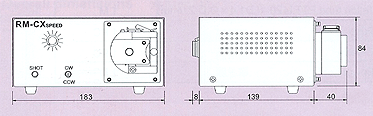

| Overall
dimensions |
(W)183 × (D)139× (H)84 mm |
| Mass |
2.3kg |
|
|
| |
| ■ Standard accessories |
| Foot
switch FS2 |
1
PC |
| Nozzle
holder NH01 |
1
PC |
Teflon
tube PTT116
(I.D1.0 × O.D.1.6mm) |
1
M |
Teflon
tube PTT1420
(I.D1.4 × O.D.2.0mm) |
1
M |
| Fuse |
1
PC |
| Grease |
1
PC |
| Power
cord |
1
PC |
|
|
| |
 |
 |
저점도 전용 controller |
|
공압이 필요없는 DC Motor RotaryTubing
Dispenser |
|
Tefln Tube의 착탈이 용이 |
|
소형,경량,저가격화의 실현 (Cost-down Type) |
|
자동화기기의 탑재에 용이 |
|
|
|
|
