Standard specifications

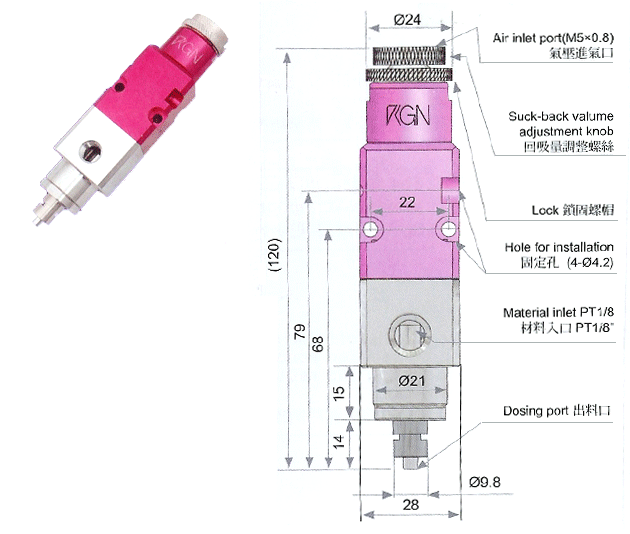

Valve mode APV601
Valve type Poppet valve
Min shot volume 0.005 c.c
volume Max. 3300 c.c.m
Viscosities ~100Pa.s (~100,000cps)
Wet body material SUS316
Diaphragm material PTFE
Material inlet Max. 0.69MPa(7.0kgf/㎠)
Material port Rc 1/8 (PT1/8")
Operating cycle Max. 200 cycles/min.
Operating air press. Max. 0.30MPa(3.0kgf/㎠)
Mass 235g

Standard specifications
Valve mode APV601N
Valve structure Poppet valve
Min shot volume 0.005 c.c
volume Max. 3300 c.c.m
Viscosities ~100Pa.s (~100,000cps)
Wet body material SUS316
Diaphragm material PTFE
Material inlet Max. 0.69MPa(7.0kgf/㎠)
Material port Rc 1/8 (PT1/8")
Operating cycle Max. 200 cycles/min.
Operating air press. 0.30~0.69MPa (3.0~7.0 kgf/㎠)
Weight 325g
* Volume(c.c/min) : 0.1MPa/min water testing result.
