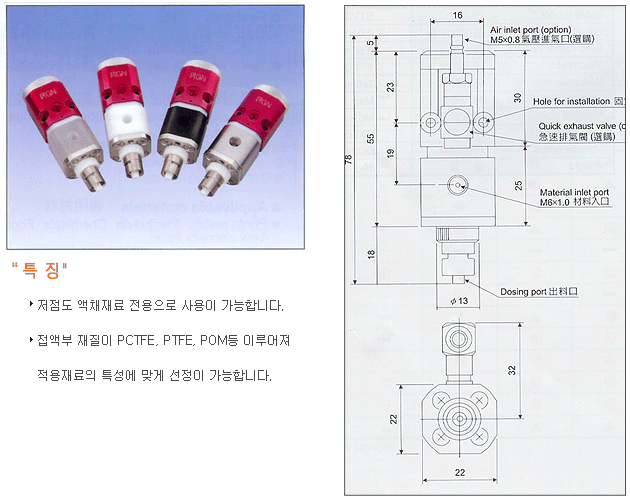

| Valve
type |
Teflon diaphragm valve |
| Valve
model |
ATV202 |
ATV212 |
ATV222 |
ATV232 |
| Min
shot volume |
0.005 c.c |
| volume |
Max. 365 c.c.m |
| Viscosities |
~1Pa.s (~1,000cps) |
| Wet
body material |
PCTFE |
PTFE |
POM |
SUS316 |
| Diaphragm
material |
Teflon |
| Material
inlet |
Max. 0.19MPa(2.0kgf/㎠) |
| Material
port |
IN : M6 × 1.0 |
| Operating
cycle |
200 cycles/min. |
| Operating
air press. |
0.34~0.69MPa(3.2~7.0kgf/㎠) |
| Mass |
70g |
70g |
60g |
110g |
|
|
