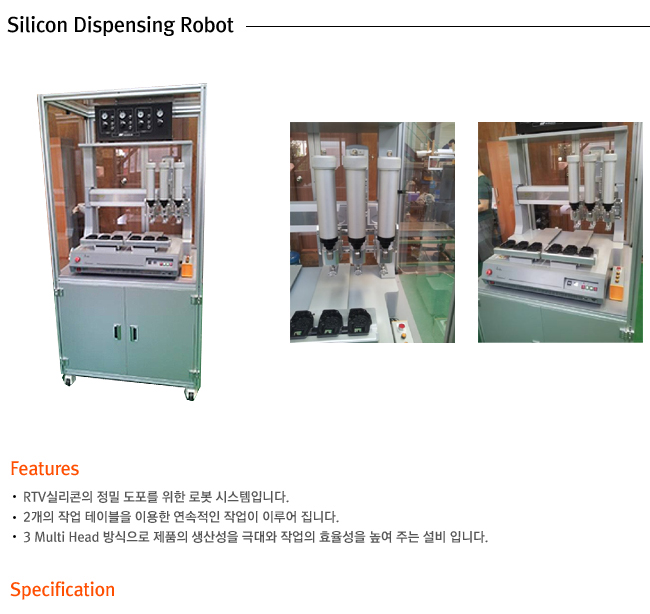

Power consumption	220V 60HZ
Range of operation	X1,X2 Axis: 300mm
	Y Axis : 500mm
	Z Axis : 100mm
Rated Speed	X1,X2 Axis: 500mm/sec
	Y Axis : 500mm/sec
	Z Axis : 250mm/sec
Repeatability accuracy	X1,X2 Axis: ±0.01mm
	Y Axis: ±0.01mm
	Z Axis: ±0.01mm
Program input	Teaching pendant, PC
Program capacity	Point files : 100 files
Program capacity	Points : 1,000 points per file

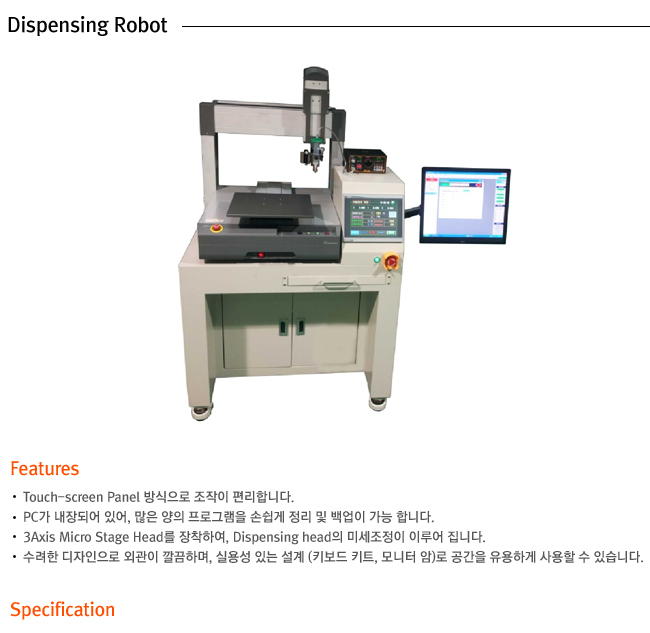

Power consumption	220V 60HZ
Range of operation	X,Y Axis: 400mm
Range of operation	X,Y Axis: 400mm
Rated Speed	X,Y Axis: 500mm/sec
Rated Speed	Z Axis : 250mm/sec
Repeatability accuracy	X,Y Axis: ±0.01mm
	Y Axis: ±0.01mm
	Z Axis: ±0.02mm
Program input	Teaching pendant, PC
Program capacity	Point files : 100 files
Program capacity	Points : 1,000 points per file

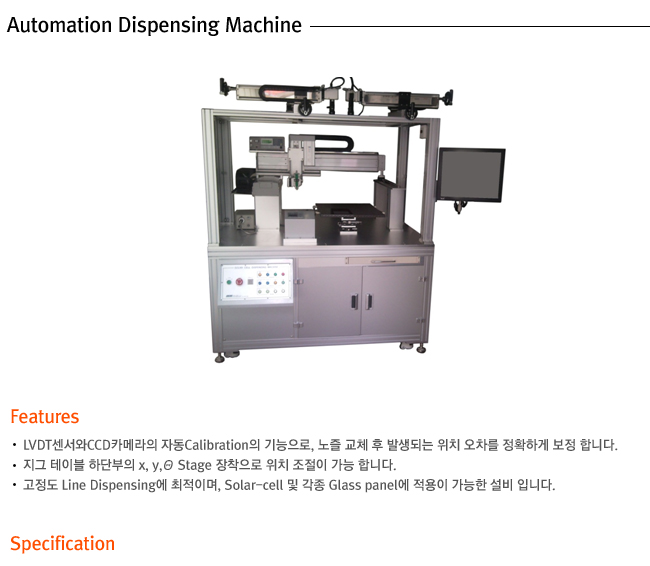

Power consumption	220V 60HZ
Range of operation	X Axis : 400mm
	Y Axis : 400mm
	Z Axis : 100mm
Rated Speed	X1,X2 Axis: 500mm/sec
	Y Axis : 500mm/sec
	Z Axis : 250mm/sec
Repeatability accuracy	X1,X2 Axis: ±0.01mm
	Y Axis: ±0.01mm
	Z Axis: ±0.01mm
Program input	Teaching pendant, PC
Program capacity	Point files : 100 files
Program capacity	Points : 1,000 points per file
